MOPTIM®SmartRef ARK-A1
Fully Automated, Easy-to-Use Ketrato-Refractometer
- Automated Measurement
- Space Saving
- Rotating Monitor
- Easy-to-use
- Patient Friendly
Fully Automated, Easy-to-Use Ketrato-Refractometer
MOPTIM SmartRef ARK-A1 – Auto Ref Keratometer is an advanced ophthalmic diagnostic device that combines the functionality of an autorefractor and a keratometer in one system. It provides objective measurements of refractive errors and corneal curvature, helping eye care professionals determine accurate prescriptions for glasses or contact lenses and assess the cornea’s overall health.
With a fully automatic system, 10.1” rotatable touchscreen, and multiple connectivity options, this device is engineered for precision, ease of use, and clinical efficiency.
Simple Operation

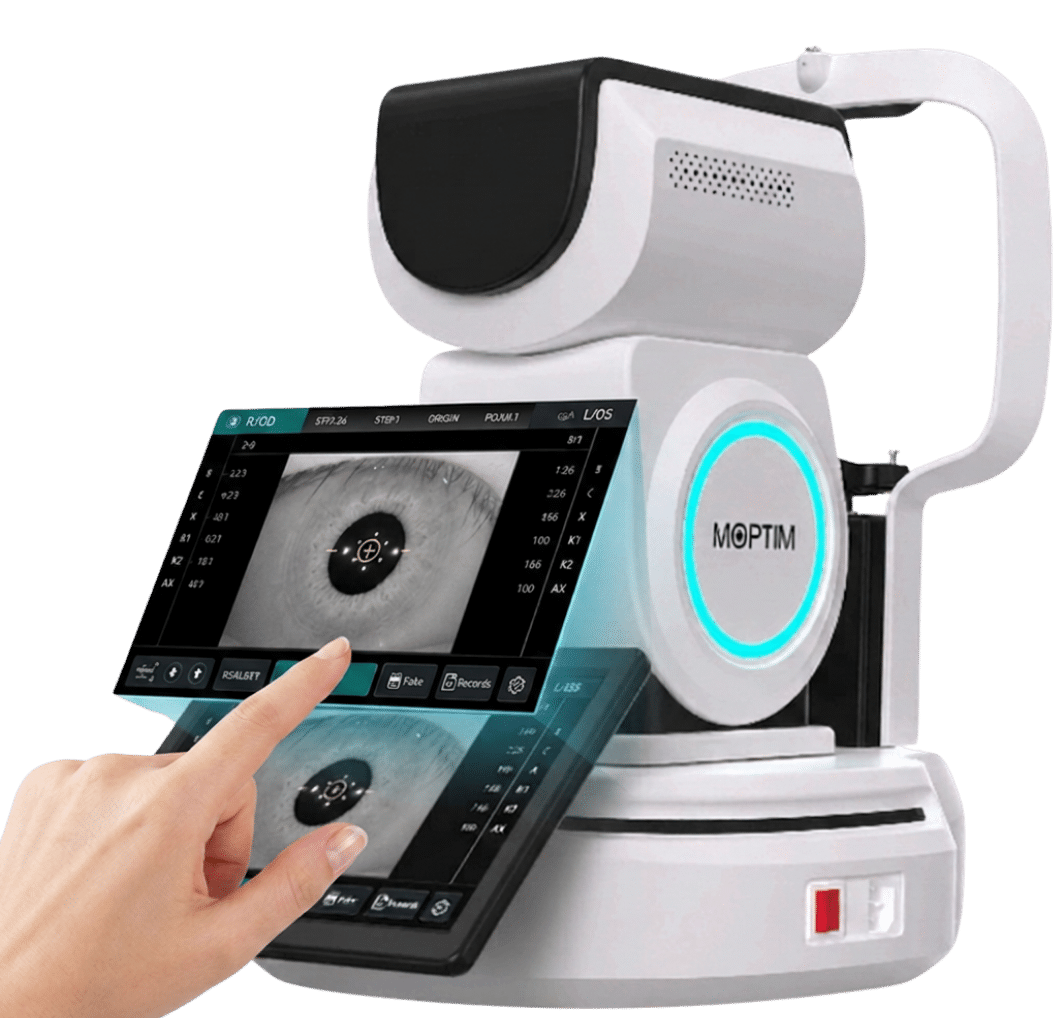

Simply touch the center of the pupil on the touchscreen control panel, and the ARK-1 automatically captures right then left eye information. The ARK-1 provides an innovative operator experience.
- Touch the pupil image on the screen for auto-alignment
- Automatic capture and R/L movement
- Data displayed with option to transfer and/or print
Flexible and Space Saving Layout
The control panel can be rotated in any direction. The compact device enables the operator to support the patient easily during measurement, even if the patient’s eyelid needs to be lifted. These unique aspects will contribute to space saving and flexible layout in your eye examination room
How the MOPTIM®SmartRef ARK-A1 works
Specifications
Model: SmartRef ARK-A1
Spherical refractive power:
-30D to +25D (0.12D/0.25D steps)*
Cylindrical refractive power:
-12D to ±12D (0.12D/0.25D steps)*
Astigmatic axis angle:
0° to 180° (1°/ 5°steps)
Corneal Refractive Power Range
25.96D 84.3D
KM Measurable Area
3mm dia. on cornea
Operation
Fully automatic one button operation
Monitor
10.1" 180° rotatable touch screen
Data Output
Built-in printer, USB, Wi-Fi
PD Measurement Range
20mm to 85mm (1mm step)
Dimensions
286-326mm (W) × 445-526mm (D) × 466-615 mm (H)
