FREY®CP- 400 / 600P Chart Panels
Ophthalmic chart panel
- Extensive range of tests and functions
- 24 inch LCD screen
- Slim Line space saving design
- Comprehensive Optotype range including EU, UK, US and International standards.
Frey Chart Panel
Frey Chart Panel suite of devices are one the world’s leading fully featured digital acuity system with >9000* devices installed worldwide. Presented in a slim line and attractive LCD panel with a proprietary built-in powerful computer, Frey Chart Panels enhances the look of any modern clinical practice designed to perform a comprehensive suite of recognized international visual acuity tests supported by easily customized reporting tools to suit clinician or practice needs.
Convenient to Use
Frey Chart Panels can be mounted directly on the wall or with use of VESA Standard adjustable Wall Mount or Desk Stand. A simple to use IR remote with direct commands is intuitive and simple to use. Tests can be carried out in daylight illumination conditions creating a comfortable and convenient environment for patients and clinician.
Enhanced Children Tests
& Fixation Methods
A complete suite of Optotypes, including HOTV
and ALLEN Pre-School tests are supported by
Animations, Colorful Pictures and Videos.
Superior Contrast Testing
Threshold Optotype Testing: Complements and
extends the assessment in visual acuity function.
Spatial Frequency Testing: A proprietary contrast
test for the early diagnosis of Cataract, Diabetic
Retinopathy and other ocular diseases.
Test Result Reporting
Patient details can be easily entered into the system
upon which the clinician can perform a sequence of
acuity and visual tests. Test results can be stored in
the Frey Chart Panel memory.
Low Vision AMD Optotypes
Standardized vision tests for patients with
Age-related Macular Degeneration (AMD)
with Optotypes size and contrast alteration at
a calibrated distance.
PRODUCT DETAILS
- Rich set of available optotype charts
- Color vision testing
- Contrast sensitivity testing
- Patient education module
- Polarization stereo tests
BRIEF INTRODUCTION

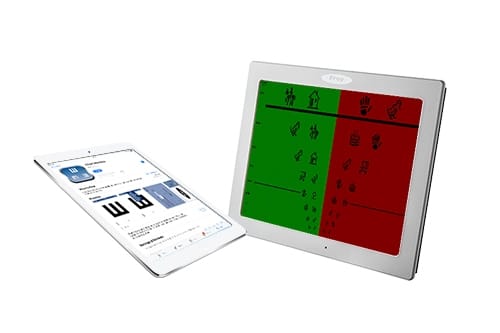

This solution is available in the following Frey Chart Panels: CP-400, CP-400P, CP-600P. Frey Chart Remote Application is available at the AppleStore for free. Just download and install it on your iPad. Currently, the app is available on iPad only.
Specifications
Model: CP-400 / 600P
Display size
24″ diagonal
VESA mount hole pattern
200 x 100mm
Number of user test programs
3 programs, 15 steps each
Auto off function
5, 10, 15 min – adjustable
Background luminance
200 cd/m2
Refraction distance
2 to 7m
Picture to Picture change time
0.5s
Power supply
External INPUT: 100 – 240 ~0.9A 50/60 Hz. OUTPUT: 12.0V 3.0A DC
Weight
3,8kg
Dimensions
605 x 370 x 30mm (L/W/H)
Power consumption
35W max
