Crystalvue®NFC-700 Fully Automatic Non-Mydriatic Retinal Camera
Fully Automatic Retinal Camera
- 45 Degrees
- 12MegaPixel
- Auto 3D tracking
- Colour, Digital Red Free, Anterior Images
- AI automated Retinal disease analysis
The NFC-700 is the only Fundus Camera
Specially designed for retinal disease screening ( diabetic retinopathy )
The Crystalvue NFC-700 fully automatically generates a fundus image within 15 seconds using eye tracking, auto focus, and auto measurement.
NFC-700 Software”keep it short and simple” had the highest priority in the design of the software and workflow. This makes the operation of the NFC-700 extremely easy. The user-friendly interface is very intuitive and delivers results in a very short time and designed to capture high-resolution images of the retina with outstanding ease and efficiency.
This advanced device allows for detailed visualisation of the optic disc, facilitating detection and monitoring of eye conditions like diabetic retinopathy, macu – lar degeneration and glaucoma.
Excellent features
- Non-mydriatic imaging : allows for retinal imaging with no need to dilate the patient's pupils. This is more convenient for the patient, as it reduces discomfort and avoids the extended recovery time that dilation typically requires.
- High-resolution imaging :The camera delivers highresolution images of the retina, which provide a useful basis for decisionmaking for both the eye-care specialist and for external AI systems.
- Fixation targets and montage :The region of interest is selected by choosing from one of ten internal fixation targets. The field of view can be extended up to 80° by selecting up to three fixation targets.
- User-friendly interface:The touch-screen interface and the logical arrangement of icons makes using the NFC700 very easy and intuitive
- Connectivity and data management : DICOM-compliant and can transfer, print and share retinal images via Ethernet, HDMI or USB. (ACER AI database)
User-friendly interface
The touch-screen interface and the logical arrangement of icons makes using the NFC7-00 very easy and intuitive.

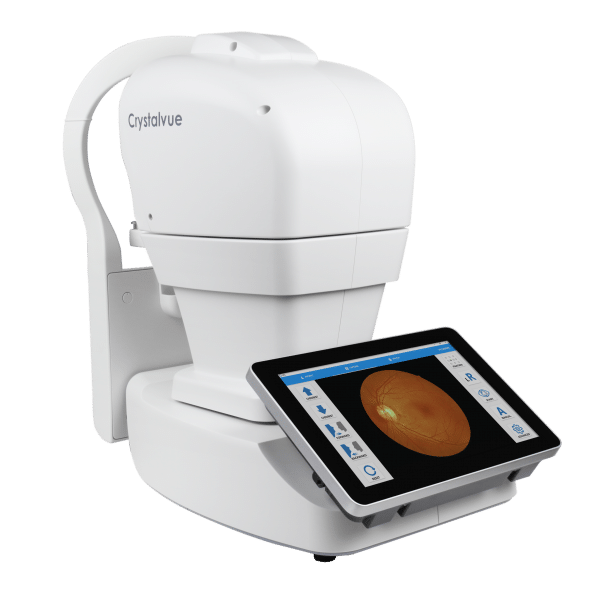

Top: Large 10.1” Touch Screen,Touch panel is easy to control
Left: The system automatically calculates the C/D ratio after cup and disc are marked
Left: The system automatically calculates the C/D ratio after cup and disc are marked
High Quality Retinal Image
The NFC-700 allows for retinal
imaging with no need to dilate
the patient's pupils. This is more
convenient for the patient, as it
reduces discomfort and avoids
the extended recovery time that
dilation typically requires.
The camera delivers 12 million pixels highresolution images of the
retina, which provide a
useful basis for decisionmaking for both the
eye-care specialist and for
external AI systems.
Selectable Fixation Targets and Montage
The region of interest is selected by choosing from one of ten internal fixation targets. The field of view can be extended up to 80° by selecting up to three fixation targets. NFC-700 guides the exam and combines the images.
How the CrystalVue NFC-700 works
Learn how Fundus Camera operates in our video.
CrystalVue NFC-700
Specifications
Fundus camera Model: NFC-700
Type
Digital non-mydriatic retinal camera
Field of view
45 degrees
Minimum pupil size
4.0 mm
Working distance
25mm
Focus adjustment range
-15D to +10D (without compensation lens)
Flash intensity
10 levels, can be set manually
Light source
Observation light source: Infrared LED
Auto exposure
Yes
12MP
Dimensions (WxDxH)
282 mm x 485 mm x 492 mm
Eye fixation
Internal ten points
Alignment
Fully automatic 3D tracking
Type of photography
Color, digital red-free, anterior eye image
