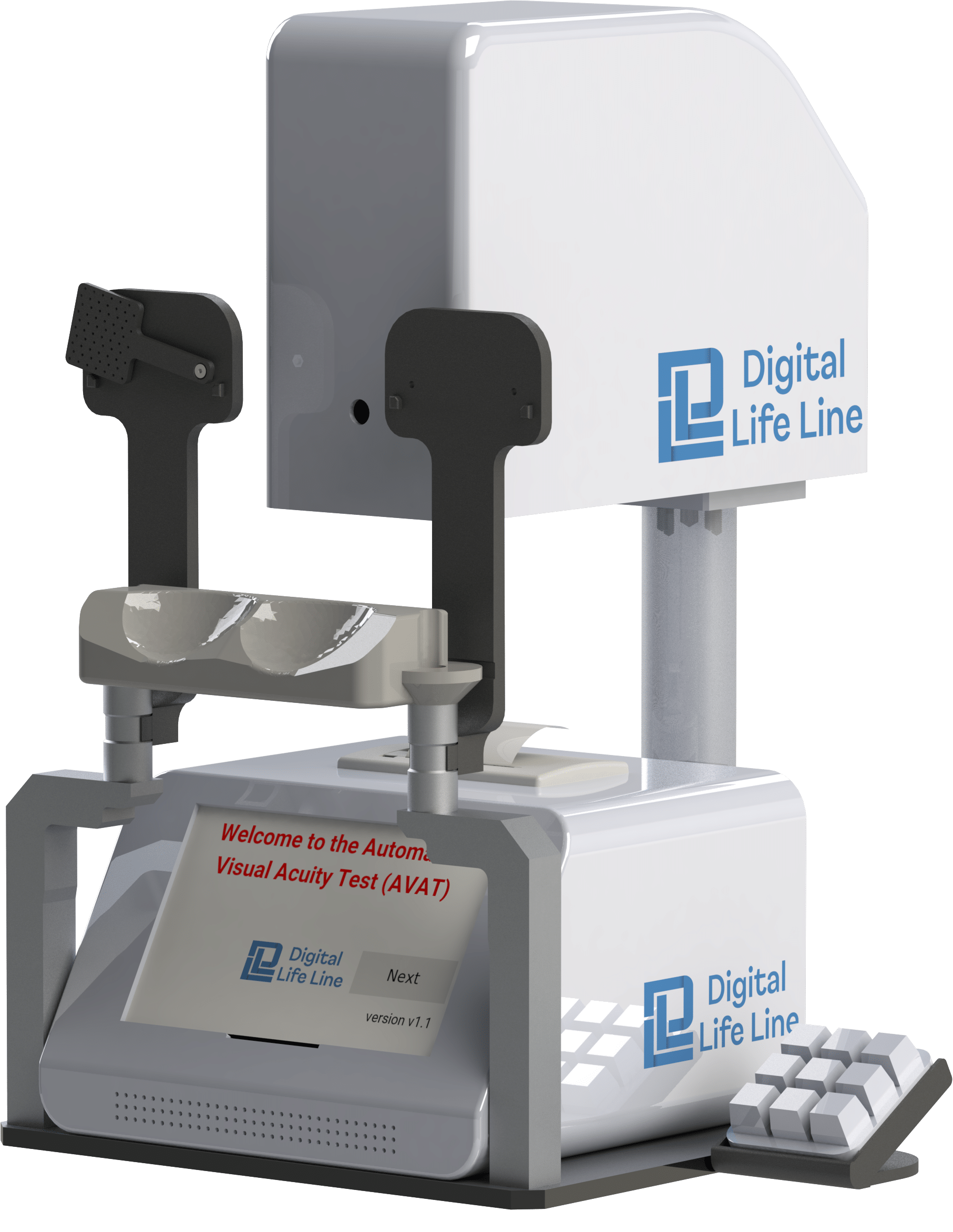

Digital-lifeline®AVAT (自助視覺敏鋭度測試）

AVAT is an self-automated visual acuity testing device that addresses the needs across public hospitals for fast and accurate screening measurements with smaller space occupancy.

  • Automating visual acuity tests
  • AVAT efficiently scales up testing
  • Minimizes costs
  • Optimizes manpower resources
Get a Quote
Product Details Image
Product Details Image

Developed by the Department of Ophthalmology at the National University Hospital (“NUH”)





Problem: Current vision screening devices are costly, require large spaces for use, and need to be supervised by trained staff,

which limits testing productivity and creates long wait-times.

With worsening manpower shortages, existing infrastructure does not have a saleable approach to meet the increased demand for vision testing.



Screening equipment is bulky and expensive
→ costly to expand vision testing to more sites

Visual acuity test requires space
→ limits testing output in small clinic space

Manual vision screening
→ more manpower is needed to support greater demand for tests



Benefit

Product Benefit
  • Self-automated testing device.
  • Less space required (1mX1m based)
  • Real time data upload to cloud system
  • Save space- 6 times reduction in size
  • Save learning effort – 1 study session required
  • Save time- 7.5 min reduction in time
  • Save manpower- 1 person needed per room.

Automated Visual Acuity Testing.



AVAT  Testing Workflow



AVAT 1.0 Clinical Performance



Pinhole Testing



Why AVAT?

  • Afocal lens technology and adaptive computer algorithm provide clinical-grade accuracy, validated at public eye specialist centres in Singapore.
  • Small physical footprint – 4 times reduction in size means more VA testing can be performed without increasing floorspace or manpower.
  • Easy, intuitive test workflow for self-testing with minimal or no supervision eliminates the need for skilled operators to administer test.
  • VA testing can be performed at any time in hospitals and community (schools, GPs) to offer comprehensive, convenient screening.
  • Results can be seamlessly integrated in existing electronic medical records or secured cloud storage for easy retrieval and removes human error.

Deployment Strategy

AVAT is the game changer in hongkong

AVAT addresses the increasing demand to decentralise the existing care model of conducting eye screening and monitoring of eye diseases. By incorporating automation and digitalisation, AVAT has allowed for more efficient vision testing workflow with minimal costs and manpower resources.

  • Freeing up space, manpower resources
  • Allowing self-administered testing with no supervision
  • Require small footprint
Download Brochure

Image gallery

Crystal Clear Image

Crystal Clear Image

Crystal Clear Image

Crystal Clear Image

Crystal Clear Image

Crystal Clear Image

Crystal Clear Image

How the AVAT works

Digital-lifeline®AVAT (自助視覺敏鋭度測試）

Specifications

Biometer Model: AVAT 01

Operating Principles
A patient’s visual acuity can be accessed by displaying optotypes at varying sizes
Intended Use
Measurement of vision at fixation in one or both eyes, with or without optical correction
Operating Requirements
1 x power point
Storage Conditions
Storage temperature: 5 to 40°C
Operatin Conditions
Operating temperature:20 to 35°C
Data format
Printout of visual acuity results
Accuracy / Caliration
Within 2 optotypes (o.04 Log MAR) on the snellen scale
Measurement range
6/60 up to 6/4.5 on the Snellen scale
Power Source
Input : 88 ~ 264V AC, 125 ~ 373V DC , Output : 4 x 5.26V 3A female USB
Technical Specifications
CPU type: Broadcom BCM2711 Processor Quad core A72 (ARM v8) 64-bit SoC @ 1.8GHz RAM: 4GB LPDDR4 SDRAM Touchscreen: 7 inch TFT LCD screen 800 (RGB) × 480 pixels Display screen: 5.5 inch 1440 (RGB) x 2560 pixels
