FREY®AP-600/ AP-600L Automated Perimeter
Reduce testing time, increase clinical insights with confidence.
- Introducing TIATM Superfast testing time
- Easy to setup, simple to operate
- 17” Capacitive Touch Screen
- Optimized clinician workflow

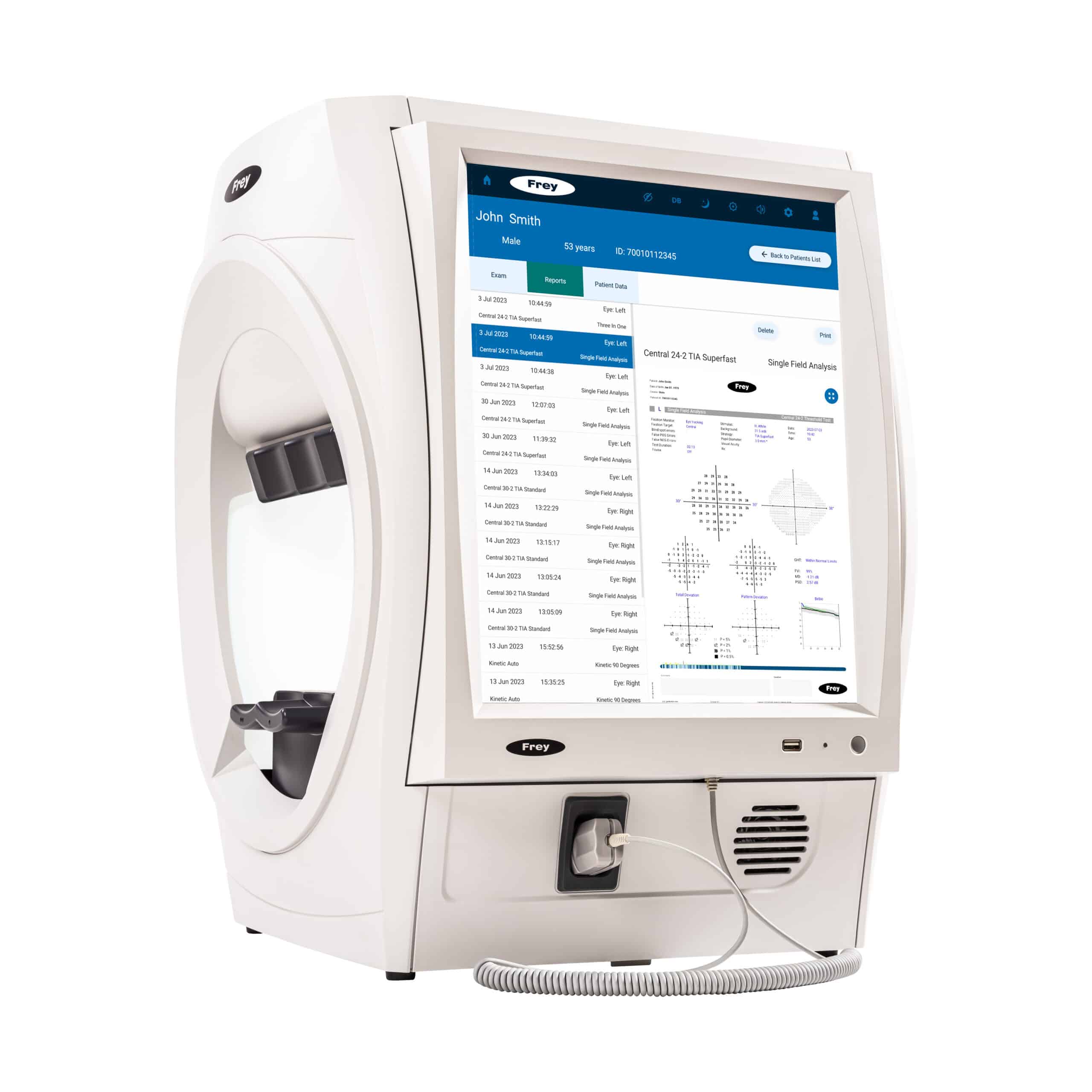

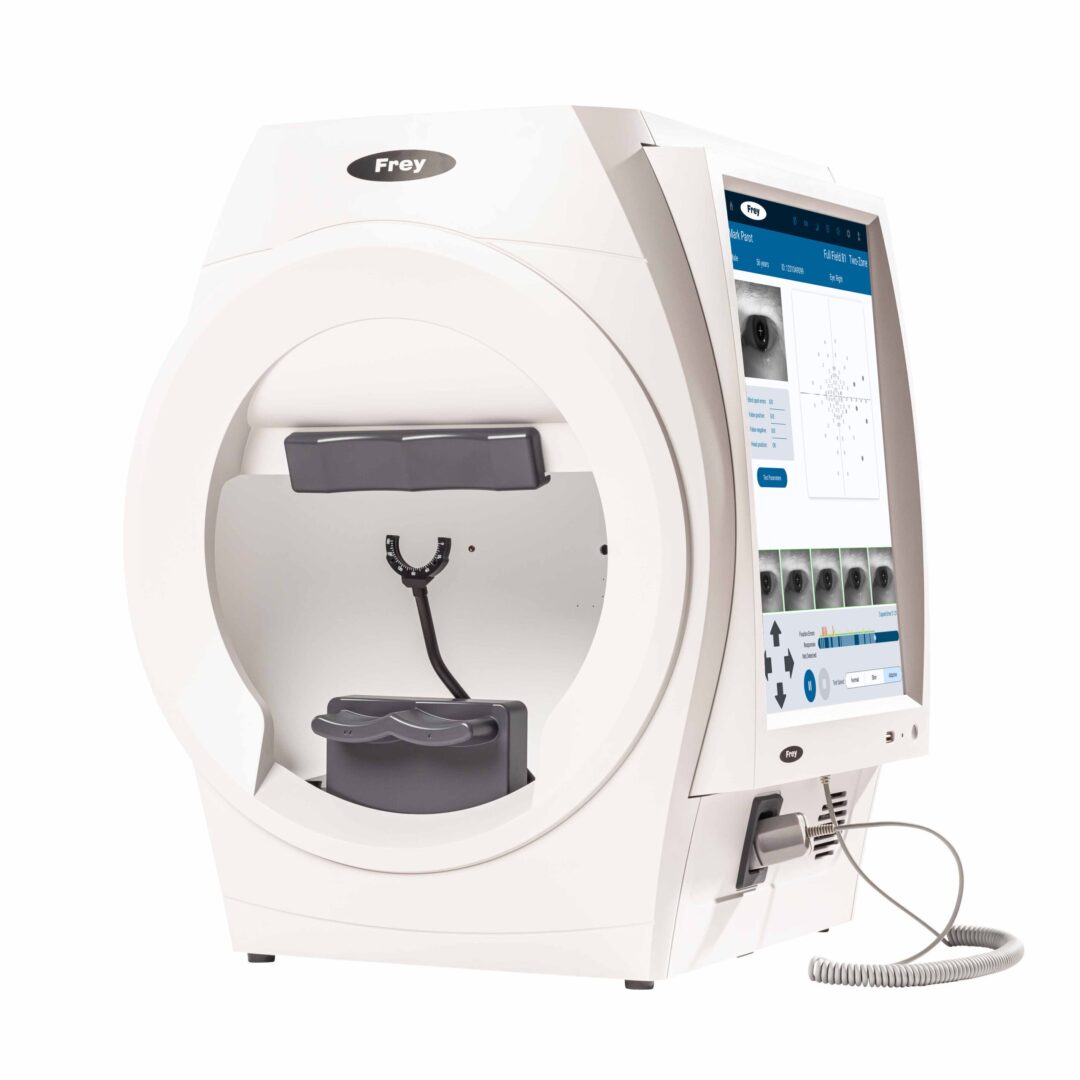

AP-600 & AP-600L Automated Perimeters
Reduce testing time, increase clinical insights with confidence.
Frey AP-600 & AP-600L Automated Perimeters are compact fully featured visual field analyzers that are simple to set up and use. Brilliant design combined with intuitive proprietary software offers expanded testing options to optimize your patient management with new TIATM Standard, Fast and Superfast tests*.
Introducing TIA™ Superfast testing time
Modern and innovative platform provides clinicians with a full suite of bespoke visual field testing strategies and protocols which improves practice workflow and enhances patient comfort while reducing clinic waiting times.
Patient audio guide
Intuitive and easy to follow automated verbal instructions and commands are available at the preparation stage and during testing. Clinicians can option automated verbal instructions or chose to guide the patient personally.
Easy to setup, simple to operate
World class design, clinician and patient interface. Unparalleled ergonomic clinician interface delivers a faster and easier visual field testing experience than ever before!
Near Vision Test**
Refractive blur produces depression of the hill of vision. With embedded Near Vision Test clinicians can automatically verify patient’s refractive correction.

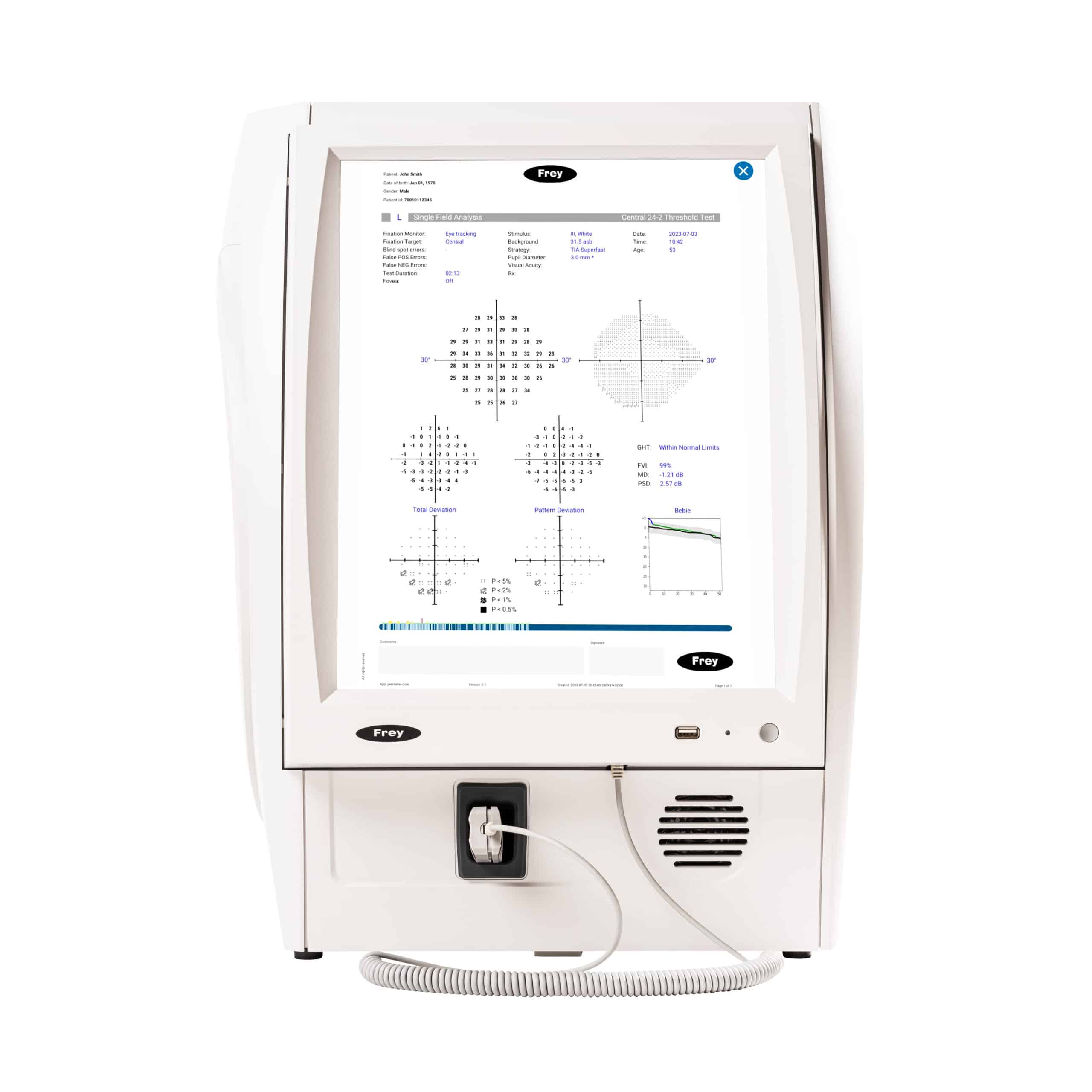

17″ Capacitive Touch Screen

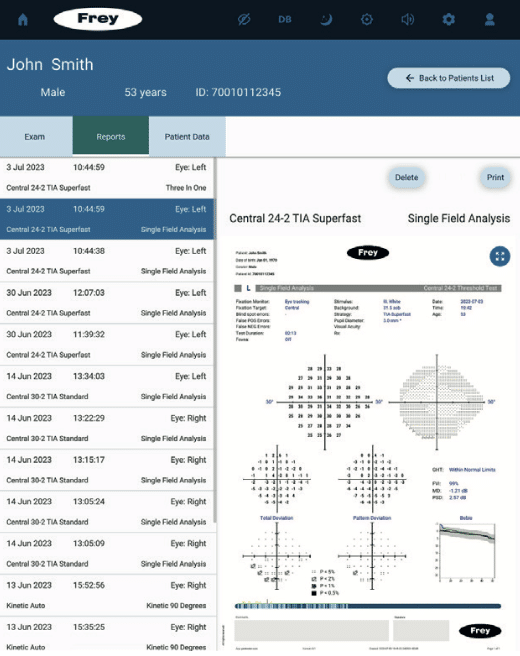

Versatility and control at the hands of the clinician in selecting patient’s name, editing patient data, commence testing and reviewing examination results with highly responsive 17″ touch screen.
Position sensor

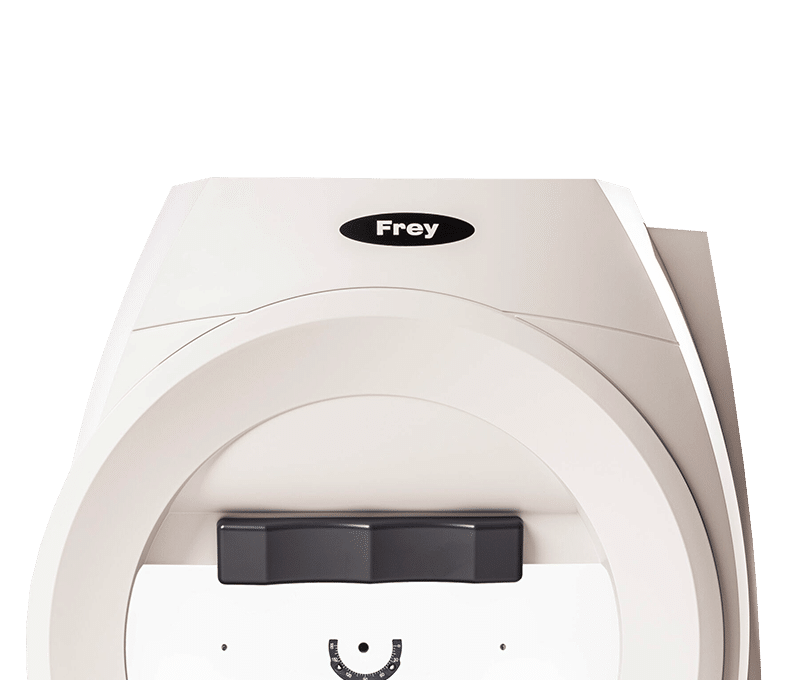

Forehead sensors continuously confirms optimal patient positioning. Clinicians are immediately notified of unexpected patient movement allowing the clinician to rapidly respond and reposition patient.
Optimized clinician workflow
Frey has successfully created an unparalleled level of integration between AP-600 & AP-600L Automated Perimeters hardware and software, resulting in streamlined, highly optimized user interface to improve clinician workflow.

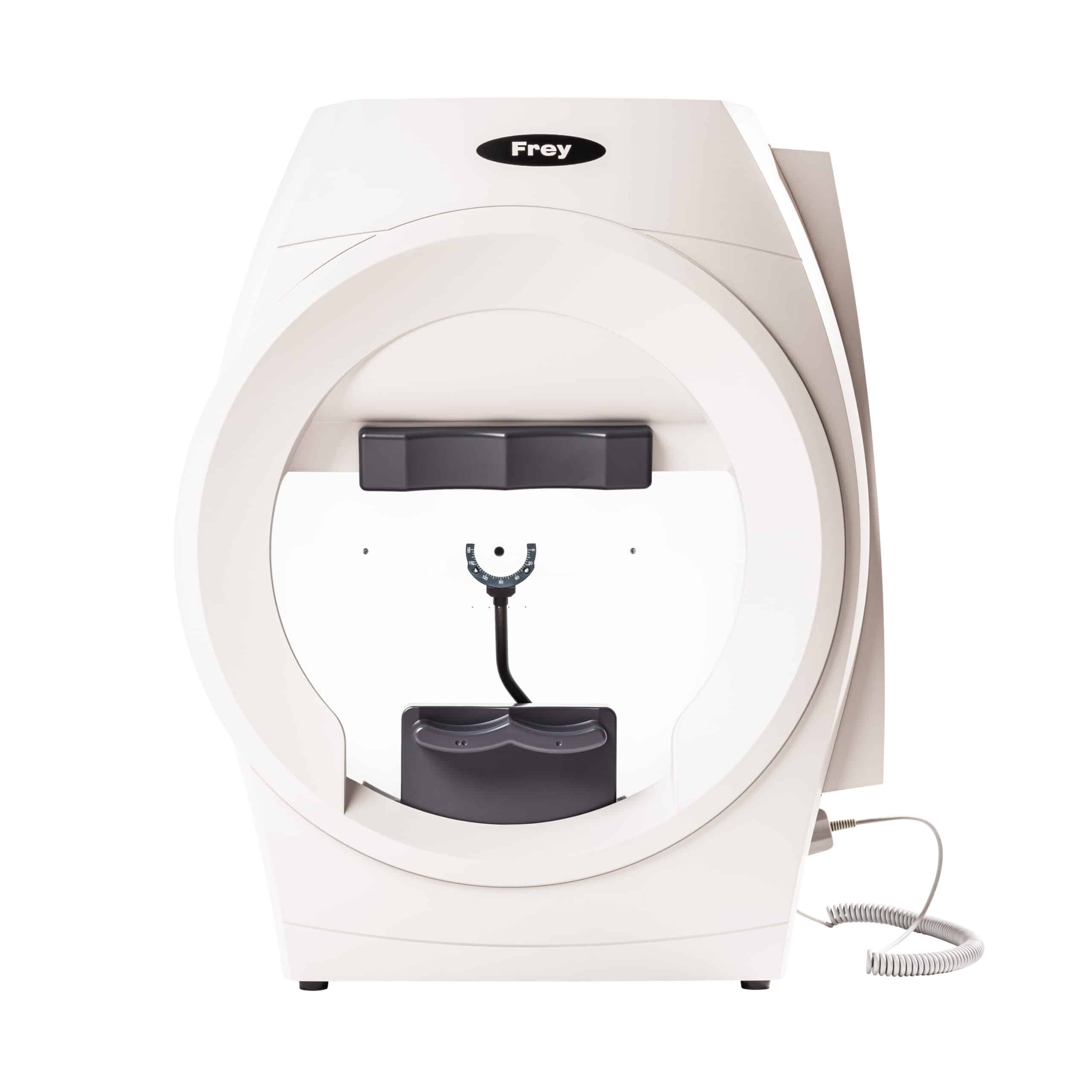

Compact design
Slim silhouette saves space. Engineered to Perfection. Compact design is the flagship feature of the AP-600 & AP-600L Automated Perimeters.
Enhancing practice efficiency
AP-600 & AP-600L Automated Perimeters ergonomic design promotes maximum patient comfort and is simple to operate. Intuitive proprietary software is an ideal clinical solution for small and medium practices to larger multi-site clinics and teaching hospitals.
- Clinician ease of use and comfort
- Advanced Eye Tracking for shorter exam time
- Near Vision Test - verify patient’s refractive correction**

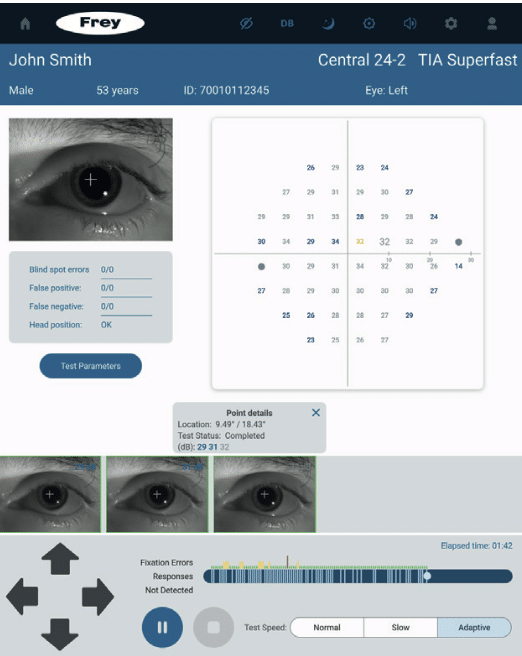

Advanced Eye Tracking
✓With each stimulus presentation eye image is captured and presented above progress bar
✓Operator can scroll back fixation history during examination of the patient
✓Eye image is stored, and entire examination process can be reviewed during examination or later to verify patient fixation throughout entire test
✓Algorithm verifies patient fixation during the test and presents the information on progress bar
EyeSnap
✓With single tap on one of test point operator can display location test history for each stimuli intensity used with
✓ information about fixation status
✓patient response/lack of response to stimuli
✓Eye snapshots are colour coded to inform operator about patient fixation for particular stimuli presentation
Image gallery

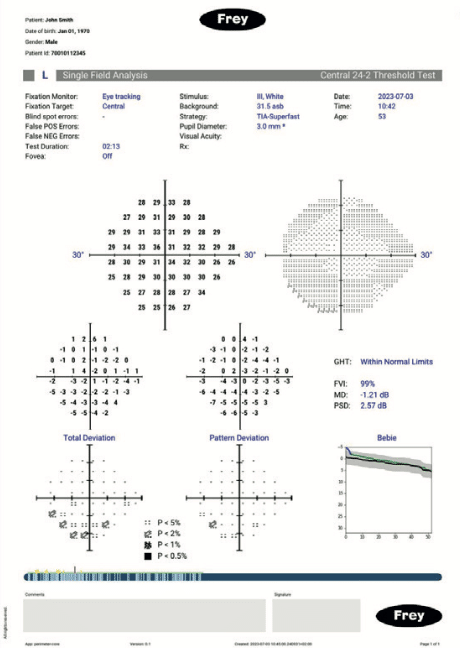

How the Frey®AP600/600L works
Compare AP-600L and AP-600
- Background illumination
- Stimulus presentations
- Near Vision Test
- Test Fields
AP-600L
- 10 ASB White/ 31.5 ASB White/ 315 ASB Yellow
- White-on-White/ Red-on-White/ Green-on-White White-on-White Blue-on-White/ Blue-on-Yellow (SWAP)
- yes
- Custom Kinetic test patterns, Auto Kinetic, Manual - Kinetic (meridian, point to point, blind spot)
AP-600
- 31.5 ASB White
- White-on-White
- No
- No
Specifications
Model: FREY AP600 / 600L
Maximum temporal range (degrees)
90
Stimulus duration
200 ms/ 500 ms or 0.1-9.9s
Visual field testing distance
30 cm
Stimulus size
Goldmann I - V
Test Strategies - Suprathreshold
Two Zone, Three Zone, Quantify Defect
Display
17” Capacitive Touch Screen - vertical layout
Speakers and microphone
Build-in
Suprathreshold Test Modes
Age Corrected, Threshold Related, Single Intensity
Weight
20.8 kg
Dimensions
576 mm x 443 mm x 457 mm
Look for reliable eye diagnostic instruments? Our team is here to help.
Get expert guidance and support to choose the right instruments for your practice.
