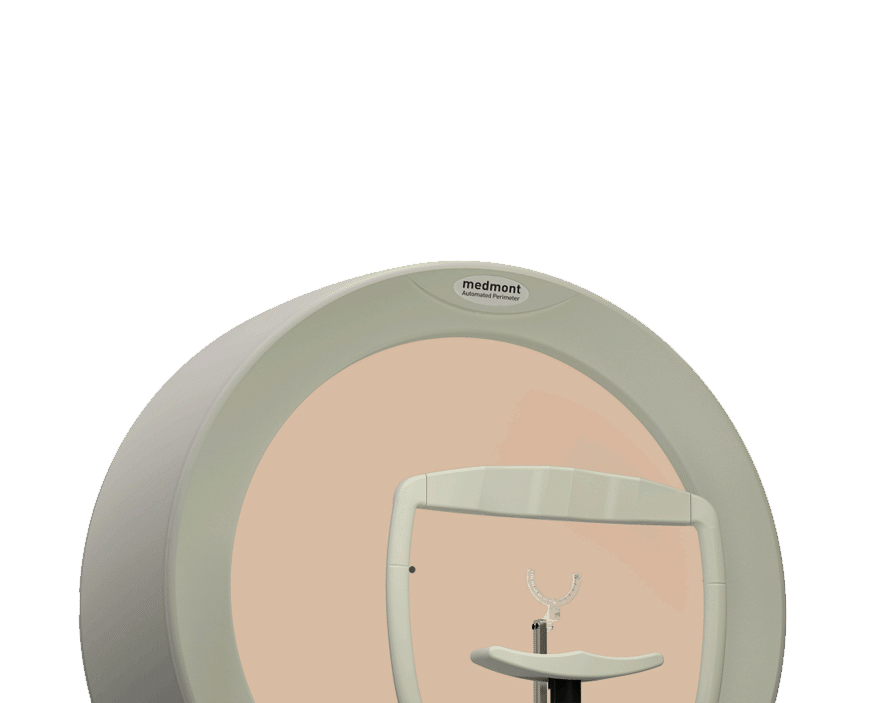

Medmont®M700 Automated Perimeter

Perimetry you can count on

Video Fixation & Eye Tracking Monitor
Flexibility to Design Your Own Test and Printouts
Patient Regression & Progression Analysis with the Ability to Select a Baseline Result

Get a Quote

Full Field Coverage (160°)

The Medmont M700 is a reliable, cost-effective automated perimeter that uses over 30 years of proven technology for accurate visual field testing, particularly effective for glaucoma detection.

Key features include its durable Australian-made design with no moving parts, high-density radial test points in central areas, customizable test strategies, minimal maintenance, and strong performance compared to more expensive alternatives like the Humphrey HFA.

PATIENT COMFORT

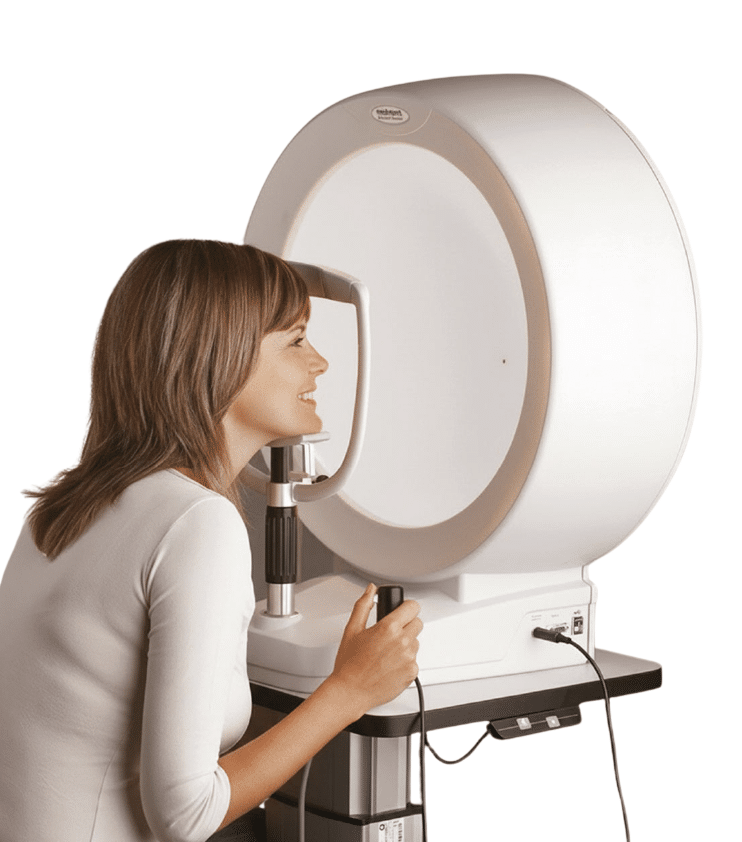

The open, modern, ergonomic design of the M700 overcomes the claustrophobic problem and lack of ventilation often experienced in full bowl perimeters. Improved patient comfort will result in more reliable field tests.

UNIQUE TEST FACILITIES

BINOCULAR DRIVING TEST:

Meeting worldwide standards to check a driver’s visual field, this test covers 160° of a patient’s visual field.

FLICKER TEST:

Tests with a flickering stimulus provide improved sensitivity and earlier detection of field loss over normal static perimetry. The M700 offers this facility with a special test strategy, which requires the patient to respond to the presence of flicker in the stimulus.

DIPLOPIA TEST:

The M700 provides a unique diplopia test, where targets are presented in a sequence requiring a progressive change in the direction of gaze by the patient. Indication of a double image results in automatic detailed examination of that area of gaze.

SYSTEM MAINTENANCE

The fully electronic stimulator unit, with no moving parts, together with standard computer hardware, results in minimal maintenance requirements. There are no routine service requirements for the M700.

OPERATIONAL SIMPLICITY

With an easy to use but comprehensive menu operating under Microsoft Windows™, no previous computer experience or detailed perimetry knowledge is required to operate the M700.

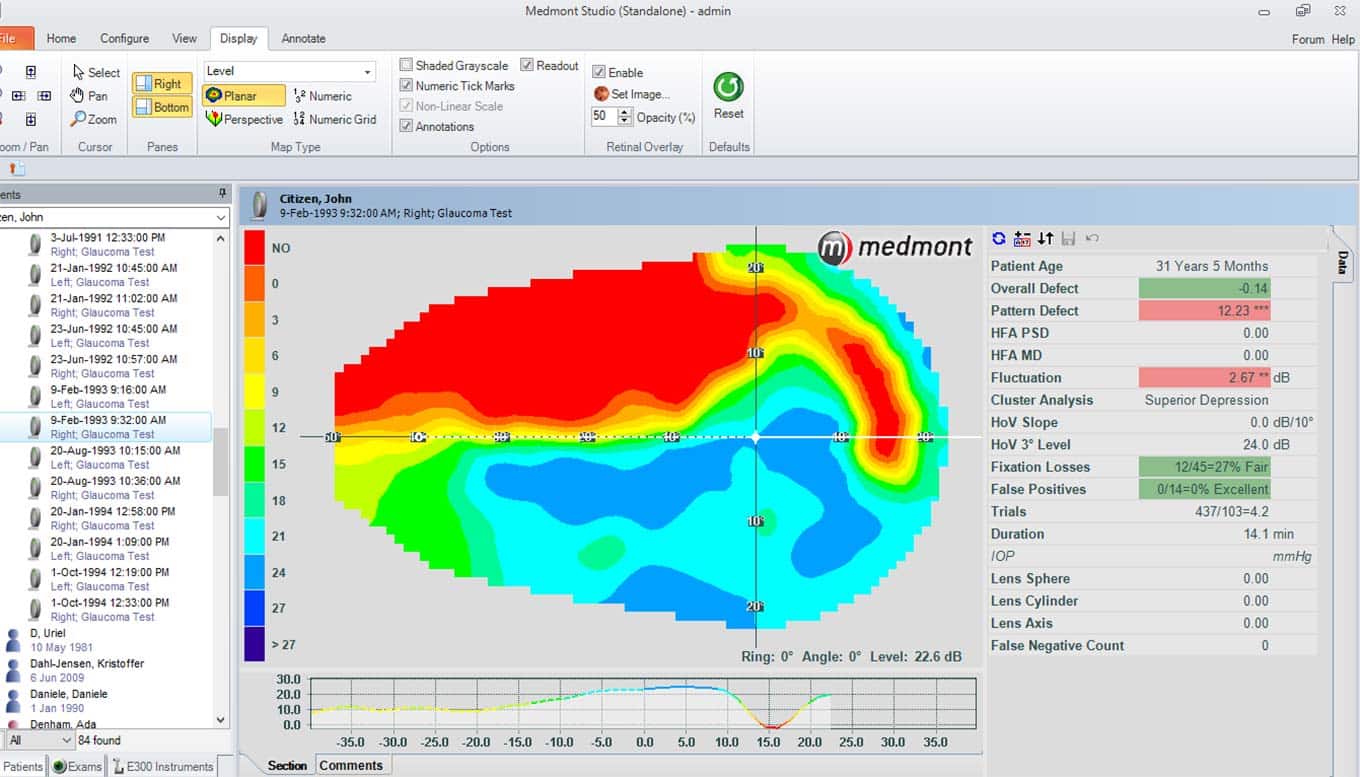

M700 COLOUR DISPLAY
A colour display of a visual field map, with a significant macula loss.

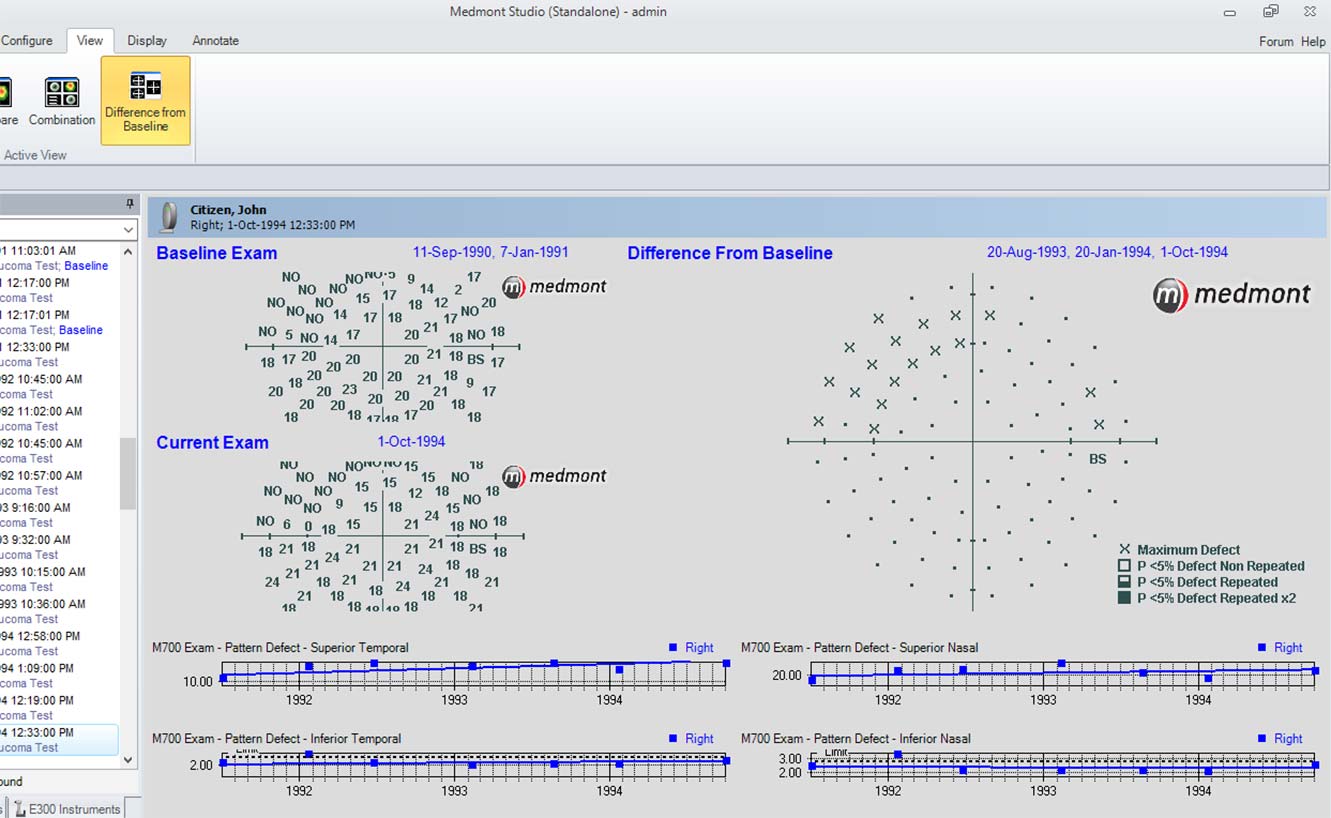

M700 DIFFERENCE VIEW
Numeric difference of two results, highlighting points of significant loss.

M700 TEST SCREEN
A typical test screen showing a glaucoma test field pattern.

M700 Key Features

Both the M700 and HFA offer rapid and reliable screening and visual field threshold tests. That includes age-related screening, full threshold, fast threshold and single intensity. They’re used to assist in the detection of glaucoma, macula disease, neurological conditions, retinal disease and more.

Full Field Coverage (160°)
Advanced Fast Threshold Testing Strategy, Employing Baysean Testing Techniques
Flicker Test Facility, With Proven Early Field Loss Detection Capabilities
Patient Reliability Indicators
Result Outputs

Download Brochure

Image gallery

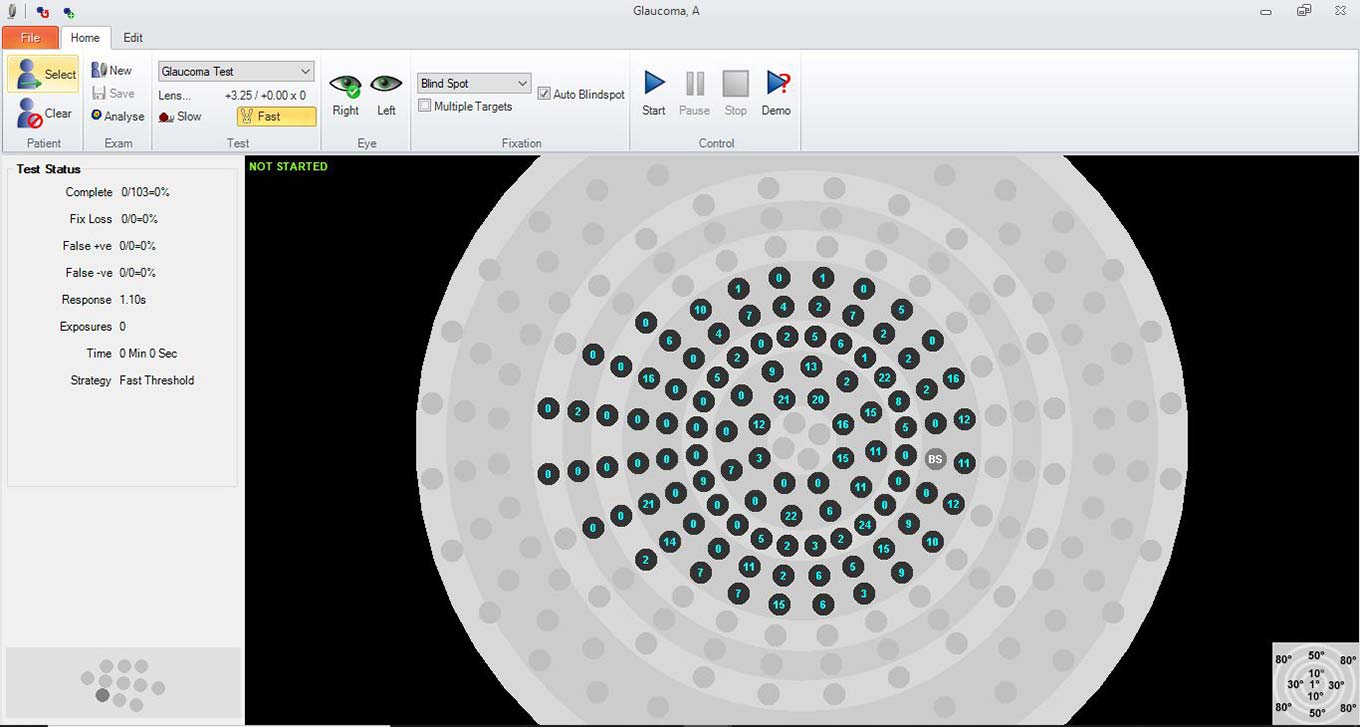

Glaucoma-Test-Template

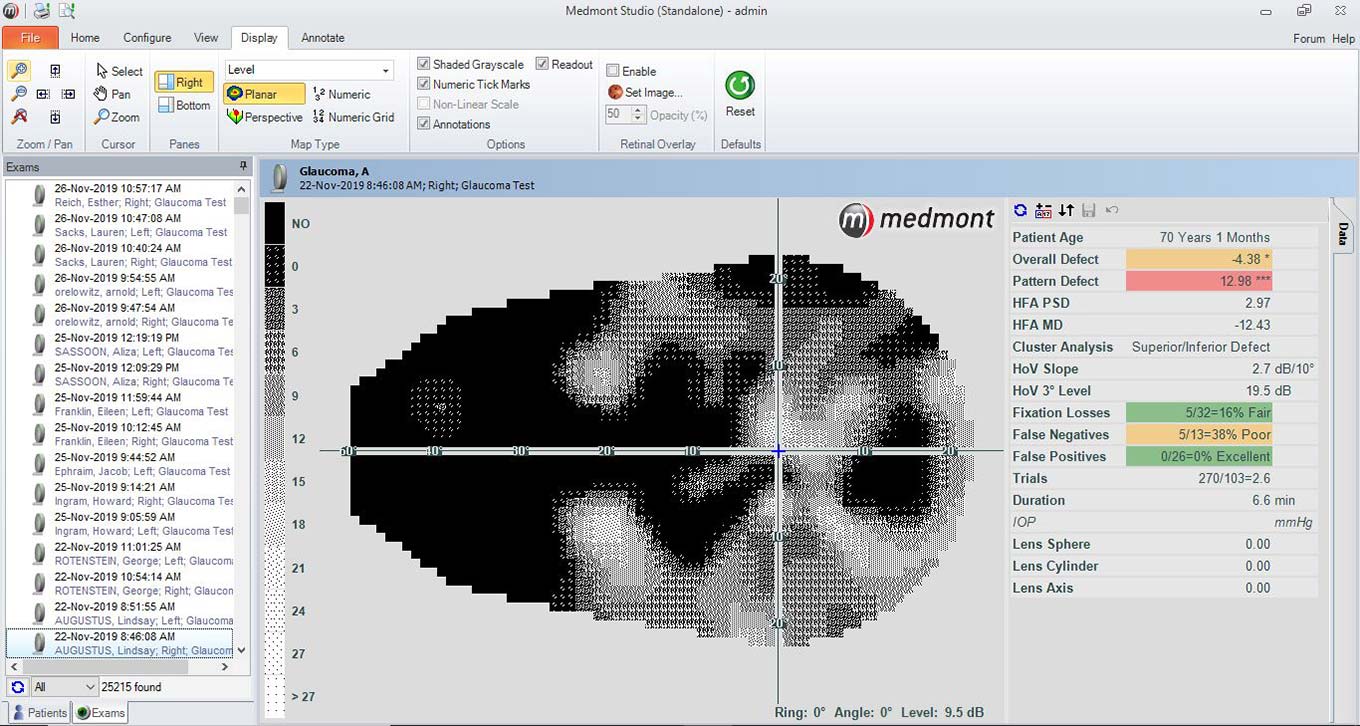

Glaucoma-Result

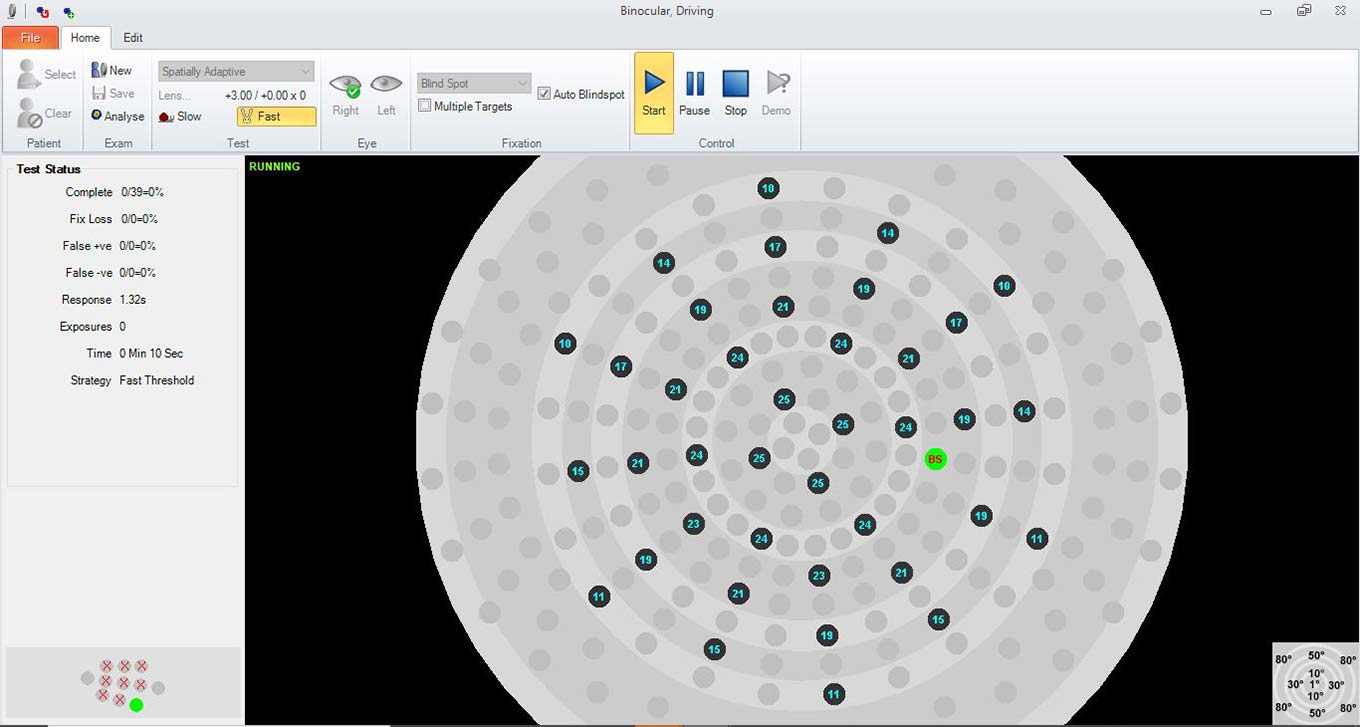

Spatially-Adaptive-Template

Difference

colour

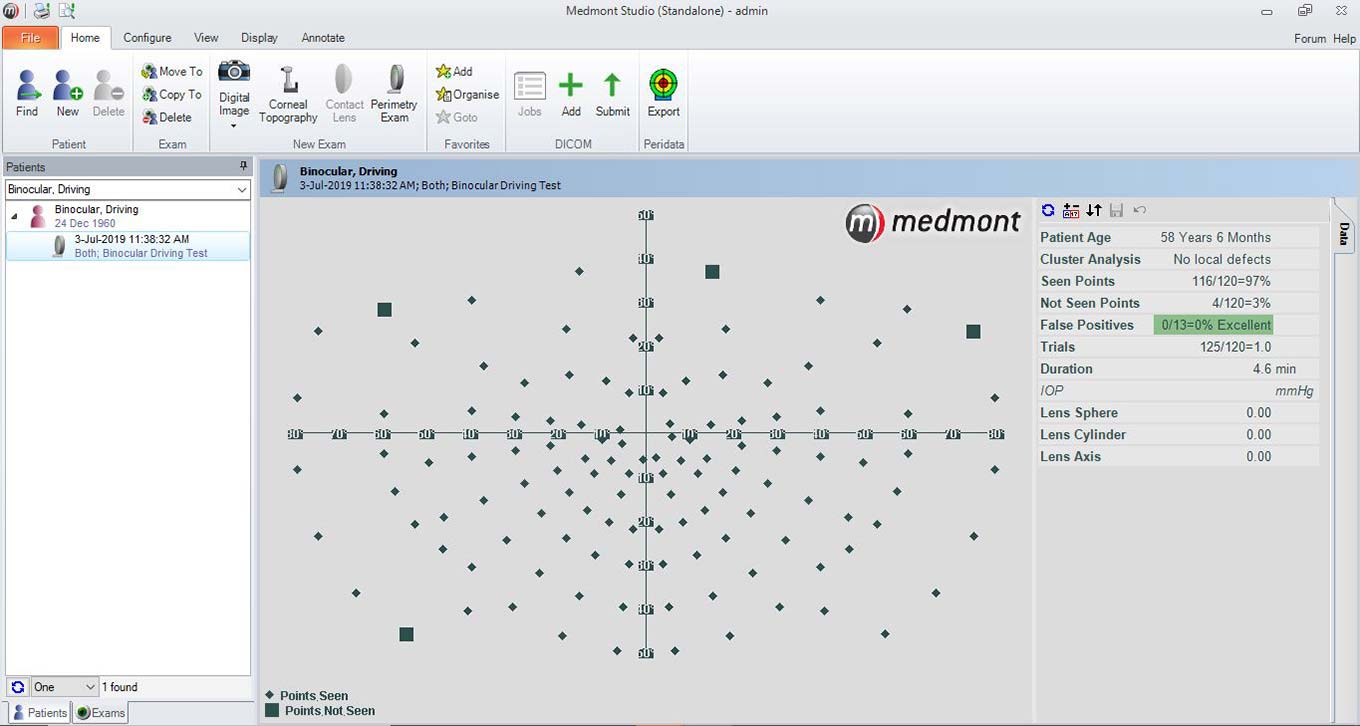

Binocular-Driving-Result

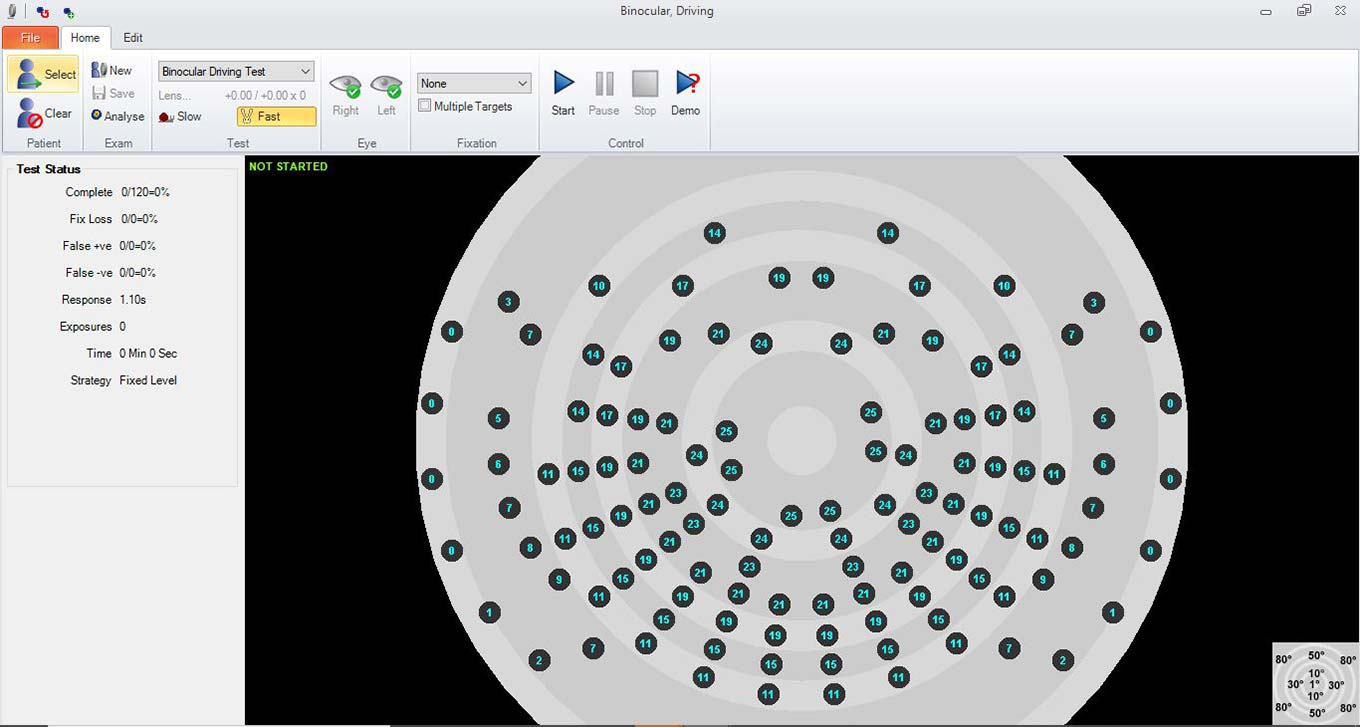

Binocular-Diving-Template

Specifications

Model: M700

Full Field Coverage

160°

Flicker Test Facility

With Proven Early Field Loss Detection Capabilities

STIMULUS SOURCE

Rear Projection Light Emitting Diode

STIMULUS SIZE

Goldmann Size III (0.43°), Model CR Red (0.72°) (Optional)

STIMULUS INTENSITY

16x3dB Levels 0db (Max Brightness) to 45dB (Min Brightness) +/-1dB

STIMULUS DURATION

Adjustable: 0.1 to 9.9 sec. (nom. 0.2 sec)

PATIENT RESPONSE TIME

Adjustable: 0.1 to 9.9 sec (nom. 1.1 sec)

MINIMUM INTER-STIMULUS DELAY

Adjustable 0.1 to 9.9 sec (nom. 0.4 sec)

TEST LENS DIAMETER

38mm

STIMULATOR UNIT DIMENSIONS

626mm Wide x 438mm Deep x 713mm High

STIMULATOR UNIT WEIGHT

12kg

UNIT POWER

100-240 VAC 50-60Hz , 0.25-0.15A
