Welch Allyn ®VS100 Spot Vision Screener

Spot Vision Screener is a hand-held, portable device designed to help users quickly and accurately detect vision issues.

  • Easy to use
  • Designed to safeguard children’s vision
  • Measurable improvement compared to chart-based screening
  • A smart investment
Get a Quote
Product Details Image
Product Details Image

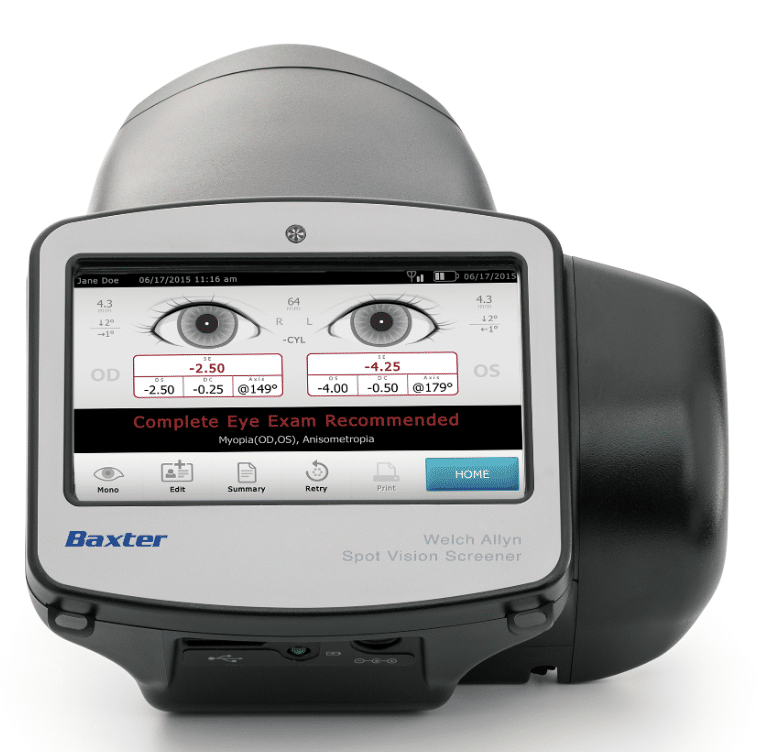

Spot Vision Screener

The Welch Allyn Spot Vision Screener is a handheld, portable device designed to help quickly and easily detect vision issues in patients as young as six months. Backed by peer-reviewed clinical evidence, the Spot Vision Screener enables fast and objective detection of six amblyopic risk factors: myopia, hyperopia, astigmatism, anisometropia, strabismus, and anisocoria.



AUTO CAPTURE

Automatically capture in seconds from a noninvasive 3-foot distance using the fixation target to keep the child’s focus.

MANAGE DATA EFFICIENTLY

Prepare for busy screening days by easily importing screening subjects via wireless connection or USB drive to your queue. Once screenings are complete, seamlessly export summary reports to be uploaded to patient electronic medical records.

WIRELESS CONNECTIVITY

Built-in driverless printing enables you to wirelessly print screening summary reports using the improved wireless radio for even faster results.

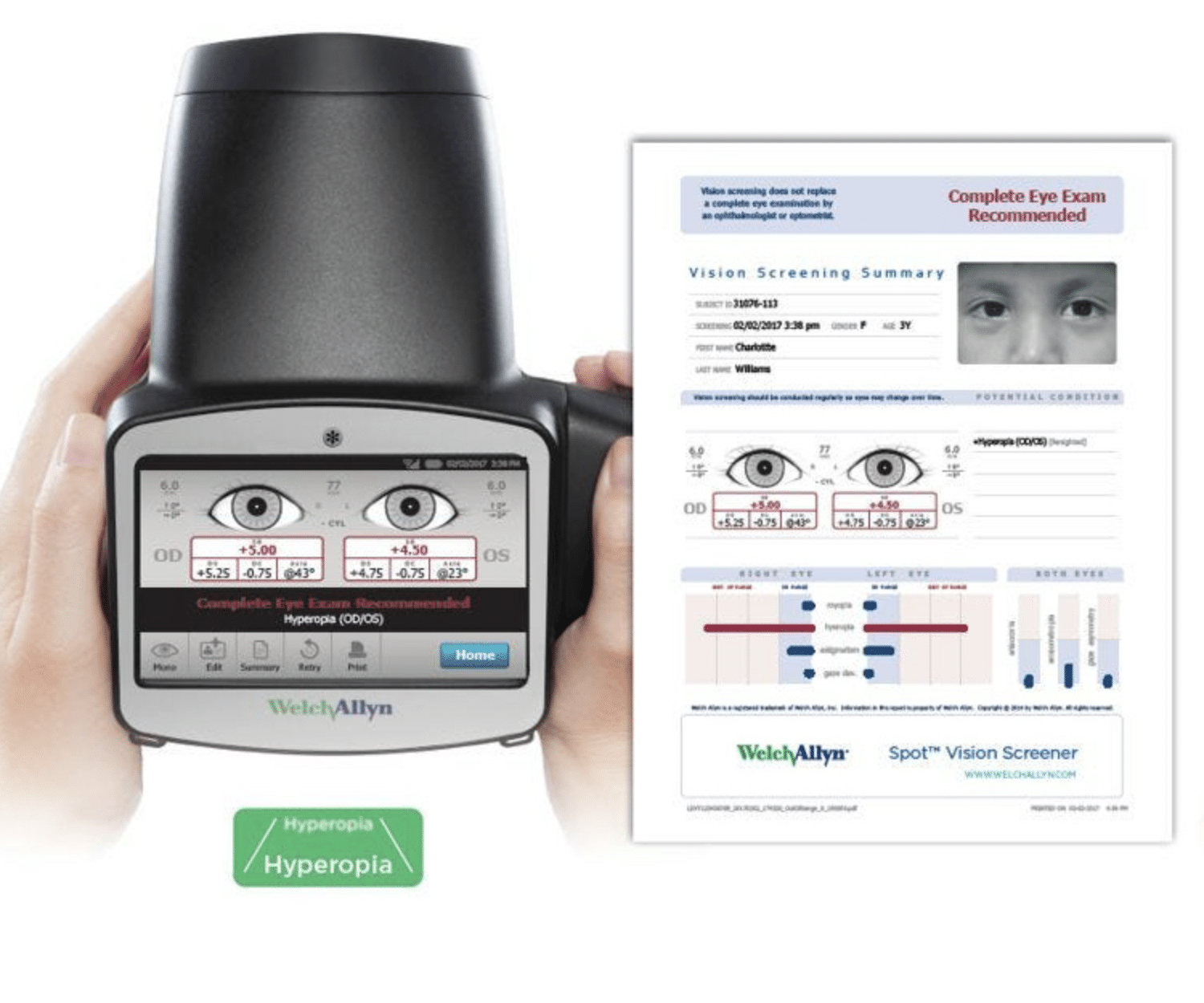

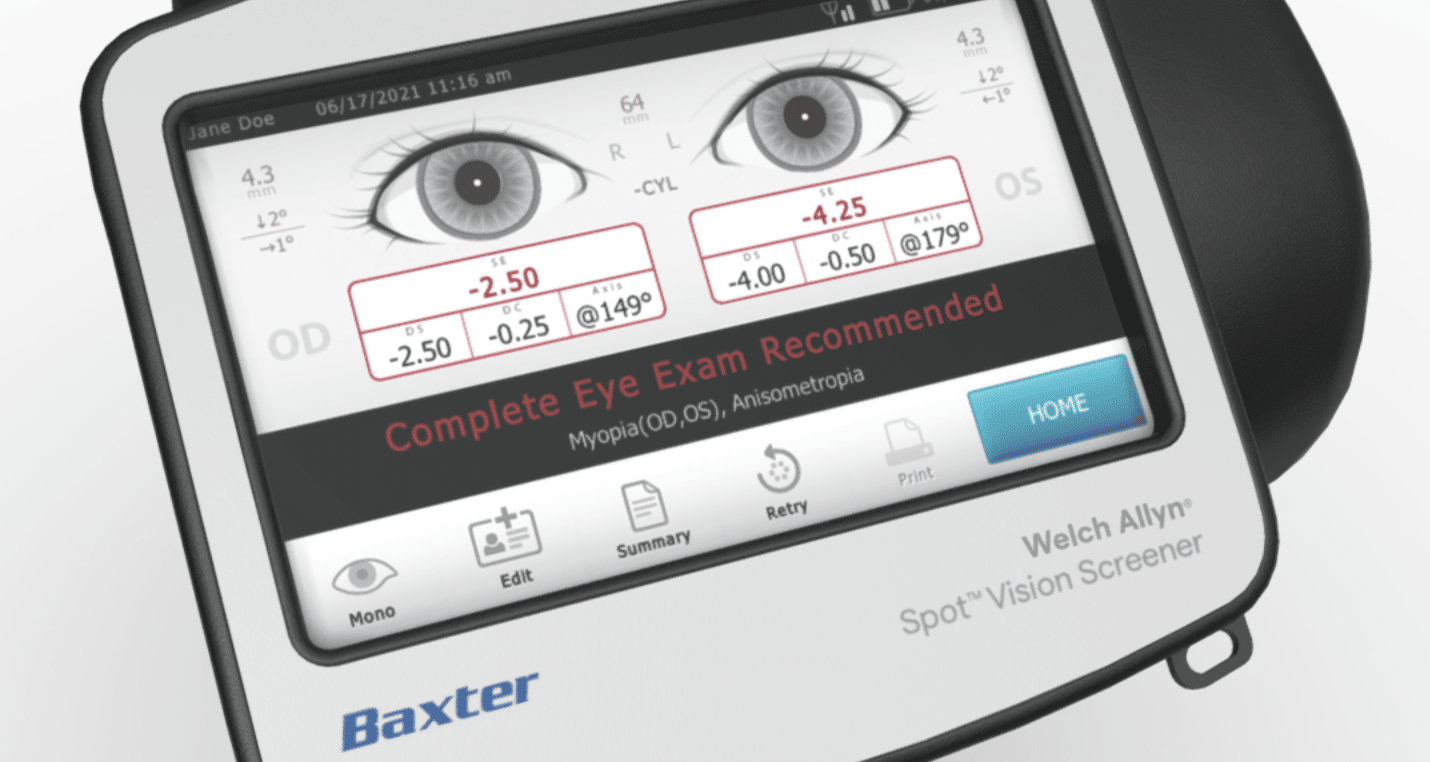

SIMPLE, CLEAR RESULTS

Bright touchscreen displays on-screen results, indicating whether a complete eye exam is recommended or if all measurements are in range. Instant results are easy to interpret and share with parents and eye care specialists.



Spot Vision Screener can screen and detect six amblyopic risk factors in children as young as 6 months:

Failing to detect and treat vision disorders in children may lead to partial or full blindness, and may result in issues with child development, academic achievement, self-esteem, social-emotional behavior, and juvenile delinquency.1

  • Easy to use
  • Designed to safeguard children’s vision
  • Measurable improvement compared to chart-based screening
  • A smart investment
Download Brochure

Better Screening Experience

Spot Vision Screener can screen and detect six amblyopic risk factors in children as young as 6 months:

Product Details Image
Product Details Image
Top: Myopia
Left: Hyperopia

How the Welch Allyn ®VS100 Spot Vision Screener works

Specifications

Model: VS100

Spherical Equivalent Range
-7.5D to +7.5D in 0.25D increments (D = diopters)
Cylindrical Range
-3.00D to +3.00D in 0.25D increments
Pupil Size
3.0 mm to 9.0 mm (3.0 mm available for 20-100 age range)
Gaze Measurement
0 to 20 degrees
Fixation Target
Random LED visual pattern and audible sound
Measuring Distance
3.3 ft
Time Per Measurement
Second(s)
Weight
~2.55 lbs (1157 g) Battery Lithium Ion. Expected l
Dimensions
Length; 8 1/2 in (20.3 cm), Width: 6 3/4 in (15.2 cm), Height: 4 3/4 in (10.2 cm)
